PELADN WO4 Mini PC Ryzen 5 5500U
Tech Spec
| Item | Description |
| Dimension | 128*128*52mm |
| Weight | 0.5 kg |
| CPU | AMD5500U/ Cores:6 / Threads:12 TDP：25W |
| CPU Basic Speed | Base Clock:2.1GHz Max. Boost Clock:4GHz |
| Graphics | AMD Radeon™ Graphics Graphics card frequency:1800 MHz |
| Cache | cache：8MB |
| SODIMM DDR4 | 16G 3200MHz / Maximum support64GB |
| Storage HDD | SATA Interface 2.5‘’，500GB/1T,7200rpm |
| SSD PCIE3.0 | M.2 NVME SSD 2280 512G Maximum support 2TB |
| Wireless LAN/Bluetooth | 8852BE/M.2 E_key WiFi 6.0/Bluetooth 5.2 |
| Interface | USB3.0*2, USB2.0*2, 2.5G local area network（RJ45)*1, 1G local area network（RJ45）*1, HDMI 2.0 4k 60HZ*2, Audio Jack (HP&MIC)*1 , DP 1.4 4K 60Hz*1,Type-C Support video/data transfer*1, DC Jack 5.5*2.5*1 |
| RTC Button | 1 |
| Power LED | 1 |
| Software OS | windows11pro |
| Adapter |
AC 100~240V, 19V/3.42A Input: 100-240V AC, 50/60Hz , output: 19V3.42A |
| Work Environment | -10°C--45°C，30%--90% Humidity |
| Storage Environment | -20°C--60°C，10%--90% Humidity |
| Accessories | Wall-Mounted bracket, HDMI 100CM, SATA cable, adapter 19V/ 3.42A |
| Additional function | Power on automatically |
- High Performance Processor: Powered by AMD Ryzen 5 5500U with 6 cores, 12 threads, up to 16MB L3 cache, and 4.0GHz clock speed for efficient performance on Win 11 Pro 64bit.
- Gaming Capabilities: Equipped with AMD Zen3 Ryzen 5 5500U and Radeon RX Vega 8 Graphics with 1750 MHz clock speed, delivering impressive gaming performance and stunning visuals.
- Fast Operation & Storage: 16GB DDR4 RAM and 512GB NVMe SSD, expandable up to 2TB with a 2.5” SSD (not included), ensuring smooth multitasking and ample storage.
- Triple Display Output: Supports stunning 4K visuals across three monitors via HDMI, DisplayPort, and Type-C, with Radeon Graphics featuring 7 GPU cores and 1800 MHz clock speed.
- Compact Design: Measuring 5x5x2 inches, the WO-4 is space-saving and equipped with a pure copper heat pipe and silent control chip for quiet operation.
- Magnetic Detachment Design: Features a quick magnetic casing for easy upgrades and configuration adjustments, simplifying personalization needs.
- 30 Days Hassle-free return
- Free Shipping to United Stated/European Union/United Kingdom
WO4! WO! GOOD!
Out of box evaluation
WO4mini PC unpacking experience and test video, so that you have a more comprehensive understanding of the product.
WO4! WO! GOOD!
AMD Ryzen R5 Series CPU
AMD Ryzen 5 5500U has 6 cores and 12 threads and is based on the genes of 4. AMD Ryzen 5 series. The processor uses a motherboard with FP6 sockets and was released in Q1/2021. The AMD Ryzen 5 5500U scored 1,134 points in the Geekbench 5 single-core benchmark. In the Geekbench 5 multi-core benchmark, the result was 5,622 points.
∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵
WO4! WO! GOOD!
AMD Ryzen R5 5500U
AMD Ryzen R5 5500U
The 6-core, 12-thread design, with a maximum turbo frequency of 4.2 GHz, efficiently handles multitasking, making it ideal for running multiple applications simultaneously such as everyday computing tasks, light gaming, and media consumption.
AMD Zen3+ architecture
The 7nm Zen3+ architecture enhances processor performance, energy efficiency, and security, suitable for various high-performance computing and application scenarios.
4.7 GHz 65W - Extreme Processing Power
With a maximum frequency of 4.7GHz and a 65W power envelope, the ADM R5 5700U chip effortlessly handles demanding tasks like accelerating gaming and smoothly playing 4K videos.
The 6-core, 12-thread design, with a maximum turbo frequency of 4.2 GHz, efficiently handles multitasking, making it ideal for running multiple applications simultaneously such as everyday computing tasks, light gaming, and media consumption.
The 7nm Zen3+ architecture enhances processor performance, energy efficiency, and security, suitable for various high-performance computing and application scenarios.
With a maximum frequency of 4.7GHz and a 65W power envelope, the ADM R5 5700U chip effortlessly handles demanding tasks like accelerating gaming and smoothly playing 4K videos.
WO4! WO! GOOD!
Almighty Mini PC
PELADN WO4 features innovative magnetic quick release cover based on hardcore structure. No tools for quick release to replace accessories or adding a 2.5-inch disk. Reliability ensured by solid hardcore structure.
∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵
WO4! WO! GOOD!
Office, Design, e-sports, Entertainment
WO4 can do it all, both your office assistant and your entertainment partner
∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵ ∵
Benefit from multi-threaded architecture. Whether it's office or production applications, PELADN WO4 can do most of the work.
The built-in Vega 7 integrated graphics is powerful enough to support most of the games and support up to 4K60 FPS for home theatre.
Benefit from multi-threaded architecture. Whether it's office or production applications, PELADN WO4 can do most of the work.
The built-in Vega 7 integrated graphics is powerful enough to support most of the games and support up to 4K60 FPS for home theatre.

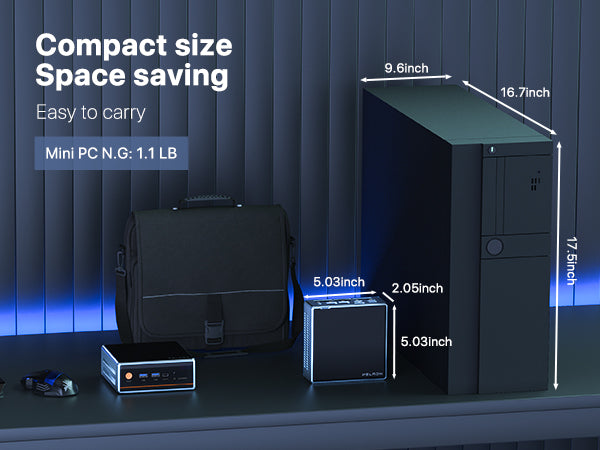

Tiny Figure Size
Mini size of pnly 0.85L and comes with VESA bracket for mounting on the back monitor
WO4! WO! GOOD!

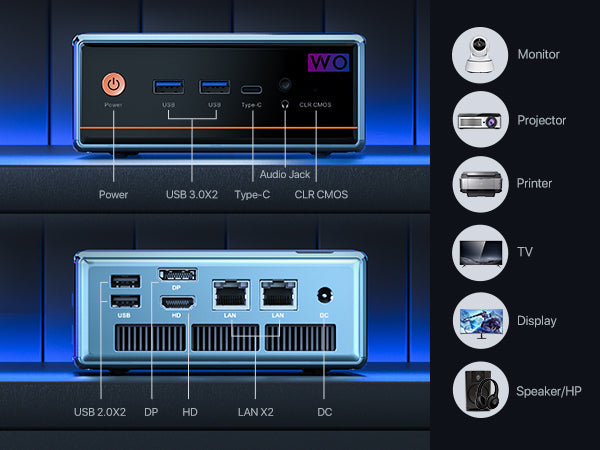

The Rich External Interface
Bluetooth 5.2, WiFi 6, and an abundance of ports to easily connect other external devices.
What‘s In The Box
We include a mounting bracket, HDMI cable and country-specific power adapter in every package.
WO!GOOD!
Pre-installed Windows 11 Pro
Comes with the latest activated Win 11 Pro: navigation is intuitive. Easy to organize. Faster performance. Plus a variety of new features perfect for unleashing your productivity and creativity.

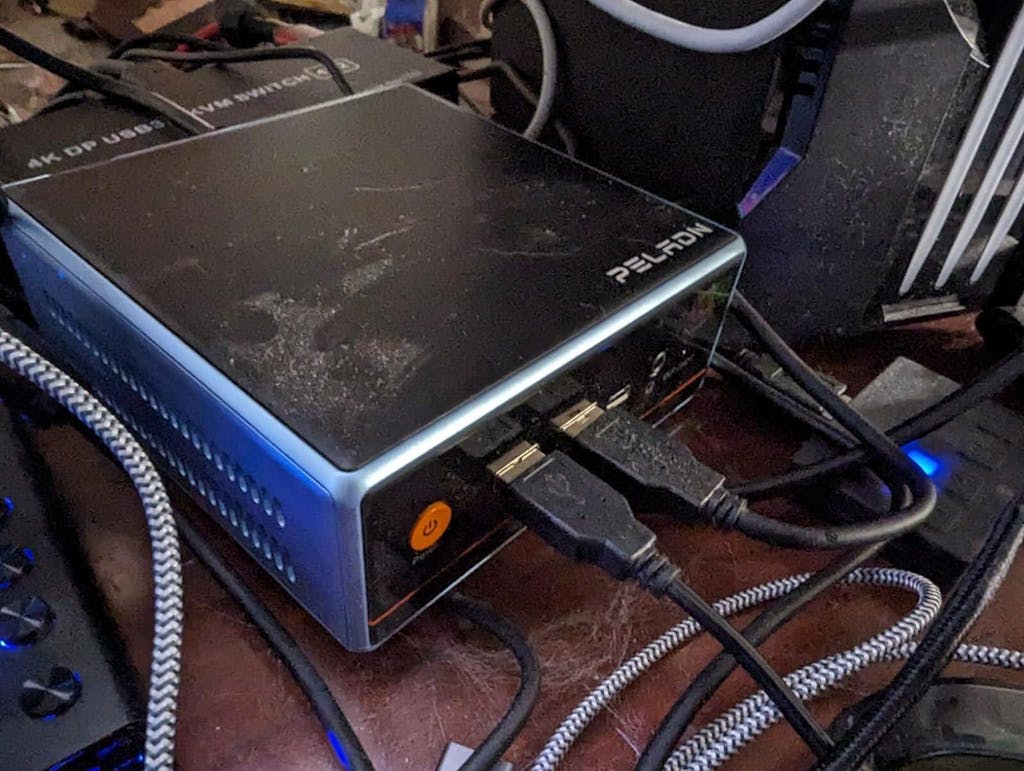

On first impression, this little unit doesn’t look like much. The casing is modern and not too gamerish, but a little bit more styled than normal business basic. Booting it up, I was surprised that the windows install didn’t try its aggressive MS profile/internet connectivity thing. I was impressed by the responsiveness overall- the extra threads matter. The graphics capability is a bit on the low side, the Heaven benchmark wasn’t exactly breaking any records, although one would find at least older titles or newer ones on lower settings. The 5700U inside was one of last gen's better onboard, but it is still onboard. I expect performance similar but inferior to something like a steamdeck. For performance I did not expect the CPU to be so snappy though, everything felt really responsive. For most productivity tasks, this thing is surprisingly ready to go. A beast in a tiny package. Do I want to run a render on it? No. Do I want to add it to my render farm? YES.
I checked the bios and there's a decent amount to tweak here, however it is the very definition of cryptic. You'll be doing a lot of scouring to determine what features do what. The XMP was enabled out of the box and most settings I feel are better left alone. I did follow a few recommendations to force the integrated card to be primary. Note to get in the bios, I had to shut ALL the way down, and then furiously tap the DEL key to get in. Restarting from windows never seemed to work, 'shut'er down' if you wanna see that ancient AMI bios. Overall, not a bad machine for everything but high end tasks. Low settings are your friend here, let it shine.
I wanted something a bit more powerful than an SBC for my retro arcade machine and ordered this PC. The PC is small and quiet. Setting it up was simple. I turned it on, followed the prompts, and I eventually had Windows 11 fully running. I installed the software needed to run my arcade games and noticed that there were some performance issues. After doing some research, I figured out that the PC could not output 4k at 60Hz. I lowered the resolution to 1440p @ 60Hz and my software ran fine. It was able to run all of the retro games I could throw at it from around 2002 on down. This was exactly what I needed and I'm glad I picked it up.
It's definitely good as a personal/light gaming computer, just be sure to tweak your setting for really demanding games.
Impressed. Works great, small portable and powerful. Running Windows and Ubuntu. Will help me greatly teaching my java full stack class
I am using to tun Dedicated HAOS and it runs smoothly and fast.
